Brightness 320cd/M2 LCD Interactive Touch Screen

Brightness 320cd/M2 LCD Interactive Touch Screen

Brightness 320cd/M2  LCD Interactive Touch Screen
Brightness 320cd/M2  LCD Interactive Touch Screen

Product Details:

Place of Origin: Guangdong
Brand Name: YODA
Certification: ROHS,CE,FCC
Model Number: Y55LVW-P03

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Plywood Case / Honeycomb Box / Flight Case
Delivery Time: Within 7~15 days after order upon payment receiving
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000PCS/per mouth
Contact Now
Detailed Product Description
Resolution:: 1920*1080 Brightness:: 350cd/m2/380/400/450/500
Brand: BOE/SAM/LG System:: Android/windows/USB Version
Application:: Indoor Size: 55inch
Bezel: 1.8mm Warranty:: 1 Years/12Months
High Light:

400cd/m2 Touch Screen Whiteboard

,

1920*1080 Interactive Monitor Displays



Indoor LCD Video Wall Display TFT Seamless Video Wall Monitors



Details of product:

1.With Glass plus and glass Capacitive Sensing Module Technology.
2.UHD 4K High resolution, display content clearly visible.
3.Including dual system configuration and conference software, not only for teaching but also for conferences.
4.Energy saving and environmental protection, long use life!
5.Various languages, various versions may be available, and the multifunction is suitable for all kinds of places.
6.Various install choices are available to meet your individual requirements
7.With teleconference function, can support 20 people at the same time,And mobile phone terminal and computer terminal can be carried out.
8.The machine itself comes with 5G hotspot.



Display Information
Screen Size 55inch 65inch 75inch 86inch
Panel Type a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD
Aspect Ratio 16:9 16:9 16:9 16:9
Resolution 3840*2160P 3840*2160P 3840*2160P 3840*2160P
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Brightness 320cd/m2 350cd/m2 350cd/m2 350cd/m2
Active Area 1209.6x 680.4mm 1428.48x803.52mm 1649.664x927.936mm 1913x1084mm
Contrast Ratio 4000:1 4000:1 1200:1 1200:1
Response Time 8ms 8ms 8ms 8ms
Display Color 8 bit 1.67M 8 bit 1.67M 10 bit 1.07B 10 bit 1.07B
Field Frequency 60Hz 60Hz 60Hz 60Hz
Service Lifetime ≥60,000 hours ≥60,000 hours ≥60,000 hours ≥60,000 hours
Touch System
Sensing Type Infrared System (Multi 10 point touch)
Response Time 6ms
Connection Full-speed USB (Driver free)
Surface Protection Tempered Glass with 4mm thickness Standard
Graphic card Intel HD Graphics, Supports 1080P, H264, 3D play
Bluetooth Bluetooth4.0
Speaker 15W x2
Network WIFI/ RJ45
Port USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating System Android 6.0
CPU Quad Core Cortex A7 1.8 GHZ
RAM DDR3 2G
ROM 32G
SD card slot Support MAX 128G
Port RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
Languages English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply 96~264V AC, 50/60Hz
Power Consumption 220W~500W
Operating Temperature 0℃~50℃
Storage Temperature -10℃~70℃
Supplied Accessories AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H) 1290.5*817.6*99.3mm 1516.3*947.1*96mm 1737.7*1072.6*103mm 1991.1x1212.6x125.6mm
Package L*W*H 1427*963*232mm 1646*1062*230mm 1860*1230*260mm 2136*1370x280mm
Net weight 40KG 50KG 68KG 76KG



Real-picture

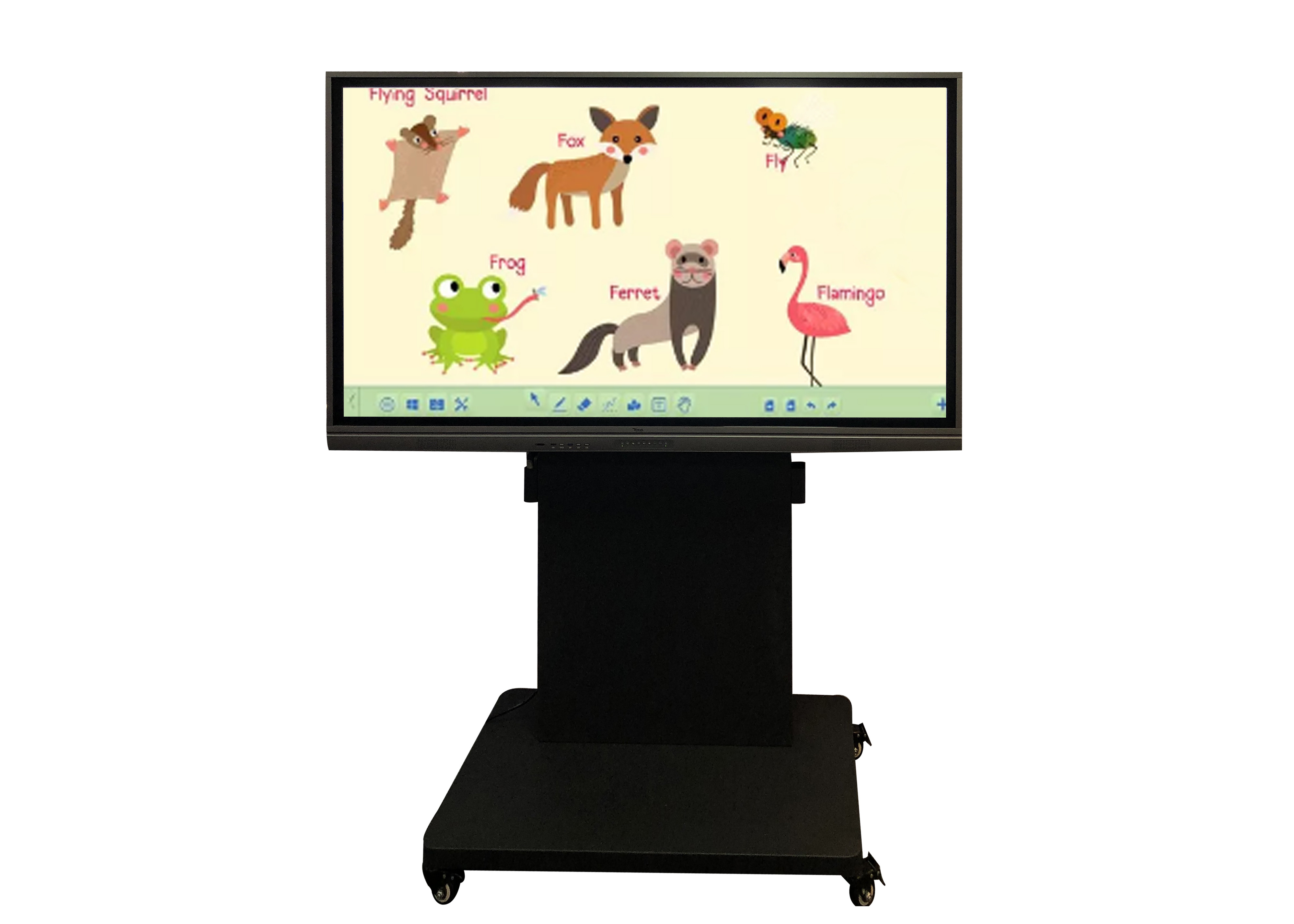

Brightness 320cd/M2  LCD Interactive Touch Screen 0


Product's details

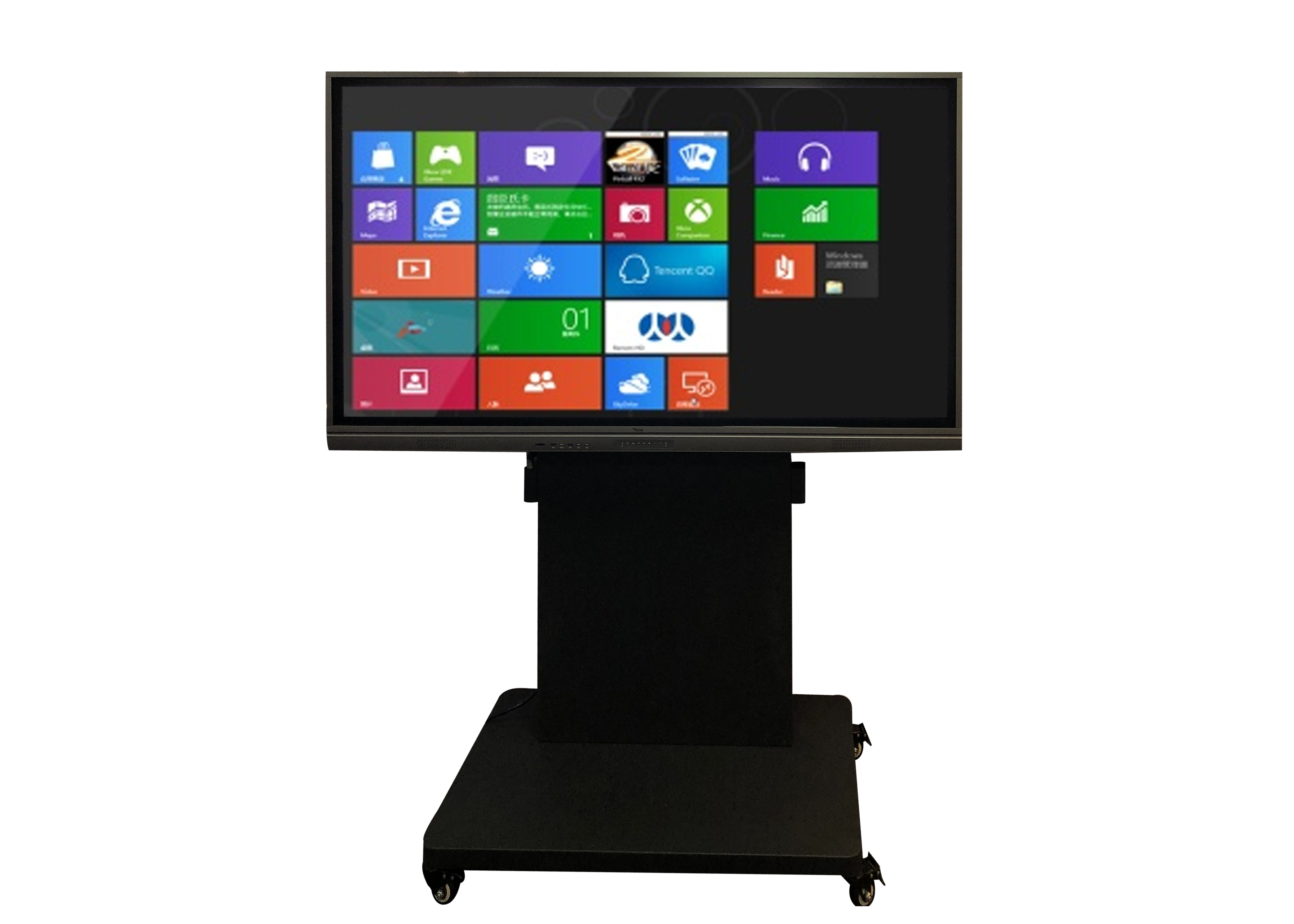

Brightness 320cd/M2  LCD Interactive Touch Screen 1


Application


Brightness 320cd/M2  LCD Interactive Touch Screen 2


FAQ



Q:How long is the warranty period of the product?
A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.

Q:When can I get the quotation?
A:We usually quote within 12 hours after we got your inquiry.
If it is very urgent,please call us or contact us via email,Skype or WhatsApp.


Q:May I buy samples from you?
A:Yes!You are welcome to place sample order to test our superior quality and service.

Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special requirements.

2)Proforma Invoice will be made and sent for your approval.
3)Production will be arranged upon receipt of your approval and payment or deposit.
4)Goods will be delivered as stated on the proforma invoice.

Q:Do you have any After-Sales service?
A:Yes!Our products have professional After-sales Department.

If you have any technical problem or question with the goods,welcome to contact us directly.

Q:Can you put my brand name (logo) on these product?
A:Yes. We can provide professional OEM services.Our campany accepts to make the
logo free for bulk orders.
