Bezel 350cd/m2 TFT LCD Interactive Touch Screen

Minimum Order Quantity : 1 PCS Price : Negotiable
Packaging Details : Plywood Case / Honeycomb Box / Flight Case Delivery Time : Within 7~15 days after order upon payment receiving
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5000PCS/per mouth
Place of Origin: Guangdong Brand Name: YODA
Certification: ROHS,CE,FCC Model Number: Y55LVW-P03

Detail Information

Resolution:: 1920*1080 Bezel: 1.8mm
Size: 55inch Brightness:: 350cd/m2/380/400/450/500
Brand: BOE/SAM/LG System:: Android/windows/USB Version
Warranty:: 1 Years/12Months Application:: Indoor
High Light:

TFT LCD Interactive Touch Screen

,

350cd/m2 LCD Interactive Touch Screen

,

1.8mm Bezel Interactive Monitor Displays

Product Description



Indoor LCD Video Wall Display TFT Seamless Video Wall Monitors



Details of product:

1.The machine itself comes with 5G hotspot.
2.The supported image formats are JPG,BMP,PNG, and GIF.
3.Multiple sizes, multiple configurations, optional.
4.High performance, low power consumption, small size, good portability.
5.Various version, different configurations, different prices.
6.Including dual system configuration and conference software, not only for teaching but also for conferences.
7.Professional and humanized inner structure, wiring neatly.
8.The appearance design is very thin, the touch use effect is good.



Display Information
Screen Size 55inch 65inch 75inch 86inch
Panel Type a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD a-Si TFT-LCD
Aspect Ratio 16:9 16:9 16:9 16:9
Resolution 3840*2160P 3840*2160P 3840*2160P 3840*2160P
Viewing Angle 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Brightness 320cd/m2 350cd/m2 350cd/m2 350cd/m2
Active Area 1209.6x 680.4mm 1428.48x803.52mm 1649.664x927.936mm 1913x1084mm
Contrast Ratio 4000:1 4000:1 1200:1 1200:1
Response Time 8ms 8ms 8ms 8ms
Display Color 8 bit 1.67M 8 bit 1.67M 10 bit 1.07B 10 bit 1.07B
Field Frequency 60Hz 60Hz 60Hz 60Hz
Service Lifetime ≥60,000 hours ≥60,000 hours ≥60,000 hours ≥60,000 hours
Touch System
Sensing Type Infrared System (Multi 10 point touch)
Response Time 6ms
Connection Full-speed USB (Driver free)
Surface Protection Tempered Glass with 4mm thickness Standard
Graphic card Intel HD Graphics, Supports 1080P, H264, 3D play
Bluetooth Bluetooth4.0
Speaker 15W x2
Network WIFI/ RJ45
Port USB2.0*2/ USB3.0*2/ HDMI out*1/ VGA out*1/ RJ45 Lan port*1/ Speaker out*1/ Mic in*1
Built-in Dual System Android and Windows
Operating System Android 6.0
CPU Quad Core Cortex A7 1.8 GHZ
RAM DDR3 2G
ROM 32G
SD card slot Support MAX 128G
Port RJ45*1, VGA OUT*1, VGA IN*1, VGA AUDIO IN*1, Ypbpr IN*1, AV IN*2, AV OUT*1, Earphone*1, TV*1, Spdif OUT*1, HDMI IN*2, USB2.0*2, SD card slot*1, Touch USB*2, MIC*1
Languages English, French, Germany, Arabic, Italian, Japanese,Korean, Russian, Spanish, etc
Power
Power Supply 96~264V AC, 50/60Hz
Power Consumption 220W~500W
Operating Temperature 0℃~50℃
Storage Temperature -10℃~70℃
Supplied Accessories AC Power Cable, 4-in-1 Remote Control, Touch Pens*2, whiteboard software
Ambient Conditions
Dimension (L*W*H) 1290.5*817.6*99.3mm 1516.3*947.1*96mm 1737.7*1072.6*103mm 1991.1x1212.6x125.6mm
Package L*W*H 1427*963*232mm 1646*1062*230mm 1860*1230*260mm 2136*1370x280mm
Net weight 40KG 50KG 68KG 76KG



Real-picture

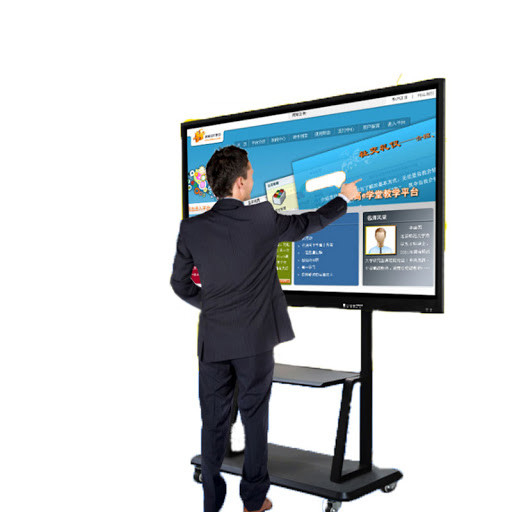

Bezel 350cd/m2 TFT LCD Interactive Touch Screen 0


Product's details

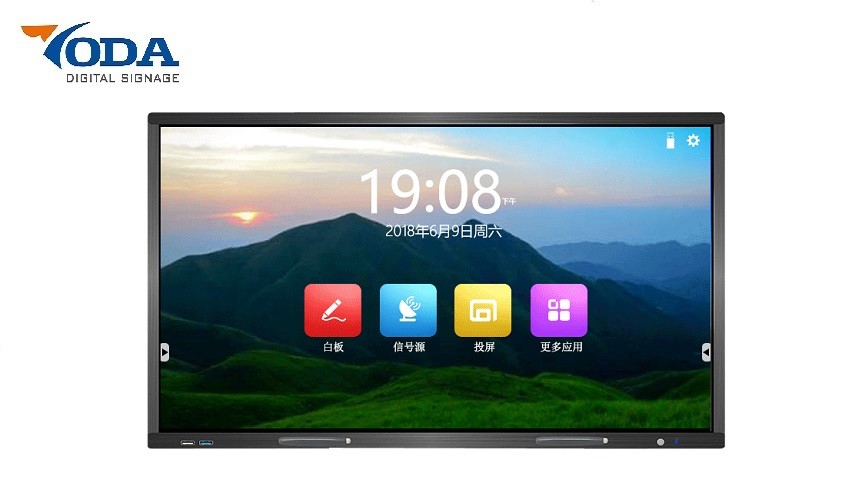

Bezel 350cd/m2 TFT LCD Interactive Touch Screen 1


Application


Bezel 350cd/m2 TFT LCD Interactive Touch Screen 2


FAQ





Q:How to place bulk order?
A:1)Tell us model number,quantity,color and other special requirements.

2)Proforma Invoice will be made and sent for your approval.

3)Production will be arranged upon receipt of your approval and payment or deposit.

4)Goods will be delivered as stated on the proforma invoice.



Q:What about the quality of your products?
A:We provide unrivaled quality:very rigorous testing process for incoming quality control,input process quality control,and final quality control for every piece.We follow QC test procedure,and do 100% FQC to ensure your satisfaction.


Q:Can I order a sample?

A:We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.



Q:Do you accept door to door shipping service?
A:Yes, we do. By DHL/FEDEX/UPS/TNT, etc.


Q:Are you a factory or a trading company?
A:We are a OEM/ODM factory.



Q:If you are not online,how can i get contact with you?
A:if i am not online,please kindly check the following contact information,you can send me
email,you can call me or skype me,i will reply you ASAP.
