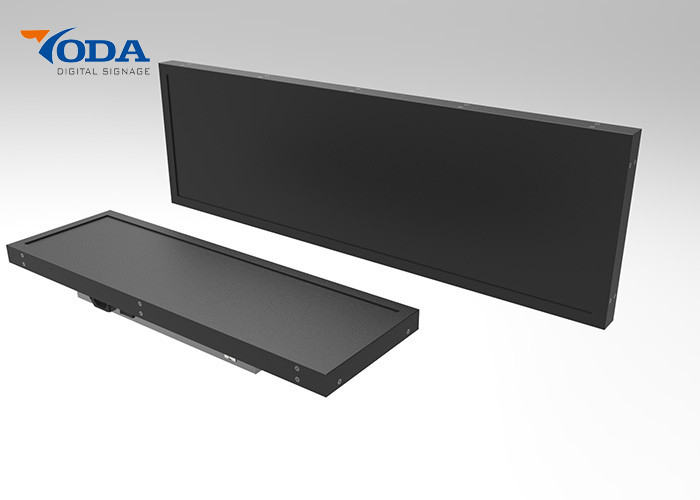

Multi Purpose Stretched Bar LCD Display Waterproof Screen Large Panel Size

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : Plywood Case / Honeycomb Box / Flight Case Delivery Time : Within 7~15 days after order upon payment receiving
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5000PCS/per month
Place of Origin: Guangdong Brand Name: YODA
Certification: CE,ROHS,FC Model Number: Y860SLD-S01

Detail Information

Size: 86inch Dimension: 2154.3×344.5×60mm
Active Area: 2148.48(H)×335.7(V)mm Resolution: 3840*600
Brightness: 700cd/m2 Viewing Angle: 178/178,178/178
Panel Brand: BOE/SAM/LG Warranty: 1 Year
High Light:

stretched display screen

,

stretched lcd display

Product Description



Multi Purpose Stretched Bar LCD Display Waterproof Screen Large Panel Size



Details of product:
1. Aluminum profile frame, a cold-rolled plate.
2. Original LG bar display panel.
3. Liquid crystal materials are organic polymer synthesis materials with high purity.
4. All kinds of touch type, IR touch frame,Capacitive touch frame etc.
5. Many specifications and models, size series, variety, convenient and flexible use, maintenance, update, upgrade easy, long service life.    6. Display quality ranges from the simplest monochrome character graphics to video displays of various specifications with high resolution, high color fidelity, high brightness, high contrast and high response speed.
7. Support a variety of languages, such as English, German, Italian, Spanish and so on, you can choose according to your preferences.      8. LCD panel resolution is 3840*600.








LCD Panel


Panel Size 86inch
Active Area

2148.48(H)×335.7(V)mm

Dimension

2154.3×344.5×60mm

LCD Type a-Si TFT active matrix
Color Deepth 8 bit, 16.7M
Resolution 3840*600
Pixel Pitch 103.65(H) x 310.95(V)um
Pixel Arrangement Pixel RGB Vertical stripe
Display Mode Normally Black
Viewing Angle 178(H)/178(V)
Power ≤50W
Brightness 700cd/m 2





Motherboard


CPU Rockchip RK3288,Quad core Cortex A7 1.8 GHz
RAM DDR3 2G
Storage EMMC 8GB/16G/32G Optional(Standard 8GB)
LCD Interface LVDS
Voltage 3.3V/5V/12V optional



Network


RJ45
wifi,Wi-Fi 802.11b/g/n
Blueteeth 4.0

3G/4G(optional),WCDMA,EVDO,CDMA,
GSM850/900/1800/1900MHz/2100MHz


Interface


1*HDMI 1.4 output 1080P
2*USB
TF up to 64GB
10W*2 8Ω Speaker
Power Supply DC12V





Software


Operating System Google Android 5.1 System
Language Multi-Language Supported




Video

Support Video playback up to 1080P @60fps Support Multi-Format video playback,including Mpeg1, Mpeg2,Mpeg4 SP/ASP GMC,H.263 including sorenson spark ,H.264 BP/MP/HP,VP8,WMV9/VC1,JPEG/MJPEG,etc HEVC/H.265 1080P @30fps


Audio MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
Image JPG,BMP,PNG,GIF


system management


File Management
Android System,open root access
Time switch
OTA remote upgrade(customized)



Real-picture


Multi Purpose Stretched Bar LCD Display Waterproof Screen Large Panel Size 0



Product's details


Multi Purpose Stretched Bar LCD Display Waterproof Screen Large Panel Size 1



Application



Multi Purpose Stretched Bar LCD Display Waterproof Screen Large Panel Size 2


FAQ


Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.


Q:How does your manufacturer do regarding quanlity control?
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.





Q:What is the minimum order quantity?

A:The MOQ is 1. Welcome to order samples. Quality is our confidence.

Q:Do you have any After-Sales service?
A:Yes!Our products have professional After-sales Department.

If you have any technical problem or question with the goods,welcome to contact us directly.


Q:How long is your delivery time?

A:The production time of conventional machines is 7-15 working days.



Q:How long is the warranty period of the product?

A:The regular warranty period is 1 year. If you need a longer warranty, please contact our sales engineer.


Q: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.
