Multi Touch Electronic Advertising Display Screen RK3288 CPU 8GB Storage

Minimum Order Quantity : 1 piece Price : Negotiable
Packaging Details : Plywood Case / Honeycomb Box / Flight Case Delivery Time : Within 7~15 days after order upon payment receiving
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 5000PCS/per month
Place of Origin: Guangdong Brand Name: YODA
Certification: CE,ROHS,FC Model Number: Y43LDS-W01

Detail Information

Size: 43 Inch Input Voltage: AC100-240V,50/60HZ
Active Area: 940.896(H)*529.254(V) Pixel Pitch: 163.35(H)*490.05(V)
Resolution: 1920*1080 Contrast Ratio: 1200:1
Type: TFT Warranty: 1 Year
High Light:

electronic advertising display screen

,

digital advertising display

Product Description



43 Inch LCD Touch Screen Advertising Display With IR Touch With Windows Multi Touch Screen Wall Mounted TFT For Mall



Details of product:      1.Explosion-proof glass, protecting passerby and LCD panel.       2.Good quality LCD panel, BOE/SAM/LG Brand.         3.Waterproof screen, extend the service life of the product.        4. Various languages, various versions and various size may be available, and the multifunction is suitable for all kinds of places.        5. The touch screen port has intelligent switching function.          6. 4mm tempered glass protection screen.          7. Sensitive touch box, click < 8ms, continuous writing < 3ms.          8. High performance, low power consumption, small size, good portability.



LCD
Brand BOE
Panel Type a-Si TFT open cell and LED backlight
Application Indoor
Panel Size 43"
Display Colors 8- bit, 16.7M
Number of Pixels 1920×1080P
Viewing Angle 89°(U) / 89°(D) / 89°(L) / 89°(R)
Luminance of White 380 cd/m²
Working Life More than 6000hrs
Touch Screen
Technology  IR touch/Capacitive Touch Optional
Touch Points 10 point
Accuracy Less than 2.5mm
Resolution 25ppi(Min.)
Cover Glass 4~6mm,hardness more than 7 mohs
Android OS
OS Android OS
CPU RK3288
RAM 2GB
Storage 8GB
TF card slot Support MAX 32G
Video Output HDMI Video Output
Audio Output Dual-channel stereo audio output
Network LAN(RJ45)
External Interfaces USB 2.0 × 2,RJ45(LAN) × 1
Internal Interfaces

Earphone Output × 1,USB 3.0 Type-A × 1,Micro SD × 1,USB Type-C OTG

× 1

RTC Support
Language English (United States Default, Multi-language supported)
External Camera Module
Dynamic Resolution 1920×1080
Image Pixel 200W
Integration Microphone Support
Focus Mode Manual focusing
Mounting Side direction with machine

FAQ



Q:Are you a manufacturer or Trading company?
A:We are manufacturer which offer OEM/ODM service.



Q:How does your manufacturer do regarding quanlity control
A:Quanlity is priority. Our manufacturer has gained CE , RoHS, FCC authentication etc.



Q:What is your after-sale service?
A:We offer 100% guarantee of 1 year on our product. And life-time technical service.



Q:What is your MOQ?
A:Any quantity is acceptable for your order. And the price is negotiable for large quantity.



Q: May i have my logo on my products?
A: Yes. We offer logo customized service.



Q: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T,L/C,Western Union,Paypal.



Q: What's the shipment terms and delivery time of your company?
A: The goods can be shipped by courier,by air or by sea. Depend on quantity and customer's requirement.



Real-picture

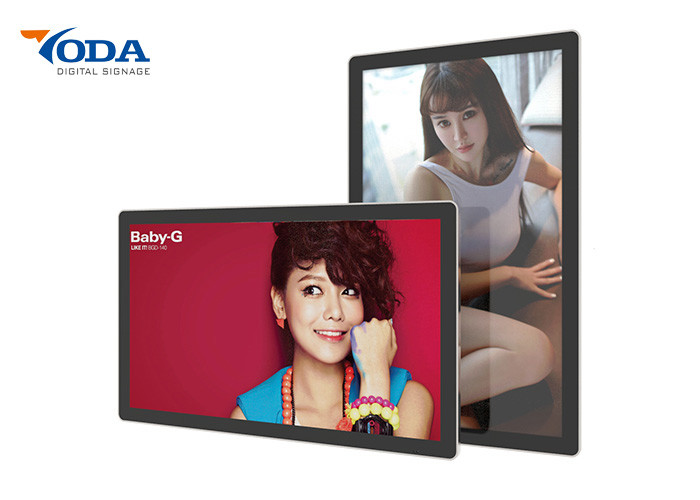

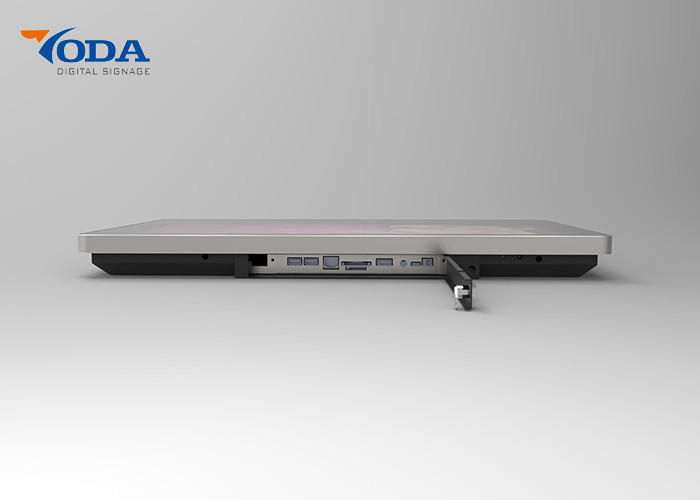

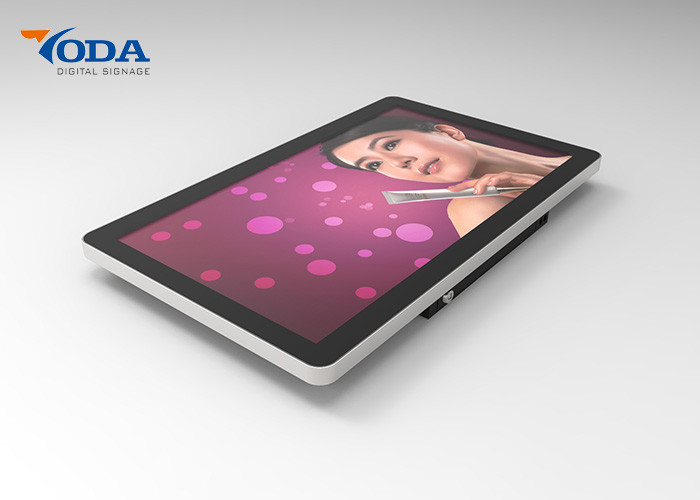

Multi Touch Electronic Advertising Display Screen RK3288 CPU 8GB Storage 0Multi Touch Electronic Advertising Display Screen RK3288 CPU 8GB Storage 1
